1000W Safety and Rescue Balloon Light – High-Intensity 120×65cm System for Military, Large Events & Critical Infrastructure
Engineered for maximum coverage and reliability, the BL03-1000 delivers over 110,000 lumens of uniform, glare-free illumination from a single portable unit. Ideal for defense operations, major disaster response, stadium security, and large-scale construction sites where lighting quality and rapid deployment are non-negotiable.
The Professional’s Choice for Demanding Environments
With a footprint of just 120×65 cm and weighing only 16 kg (including tripod), the BL03-1000 fits in standard vehicle cargo bays yet lights up areas exceeding 400 m². Its ruggedized design meets the stringent demands of NATO partners and UN logistics teams operating in extreme climates.
Technical Specifications
| Parameter | Specification | Unit |
|---|
| Model | BL03-1000 | - |
| Power | 1000 | W |
| Luminous Flux | 110,000 | lm |
| Luminous Efficacy | ≥138 | lm/W |
| Dimensions | 120 × 65 | cm |
| Weight (incl. tripod) | 16 | kg |
| Input Voltage | AC 100–240V / DC 24V or 48V (dual input) | - |
| Ingress Protection | IP65 | - |
| Color Temperature | 5000K (standard), 5700K / 6500K (optional) | K |
| Dimming | 0–100% PWM via remote or app | - |
| Mounting Options | Heavy-duty carbon fiber tripod (max 5m), magnetic base, vehicle roof mount, crane hook | - |
| Operating Temp. | -20°C to +50°C | °C |
| Lifespan | ≥50,000 hours | hours |
Key Features
Smart Control & Monitoring
Control brightness, schedule on/off times, and monitor power consumption via Bluetooth or optional Wi-Fi module. Ideal for unattended perimeter lighting or energy-managed camps.
Maximum Coverage Height
Extendable carbon fiber mast reaches 5 meters—higher than standard tripods—to illuminate wide zones without obstruction. Wind-resistant up to 15 m/s with guy ropes.
Application Scenarios
| Sector | Use Case | Operational Advantage |
|---|
| Military & Defense | Forward operating base (FOB) perimeter lighting | No IR signature, silent operation, low thermal profile |

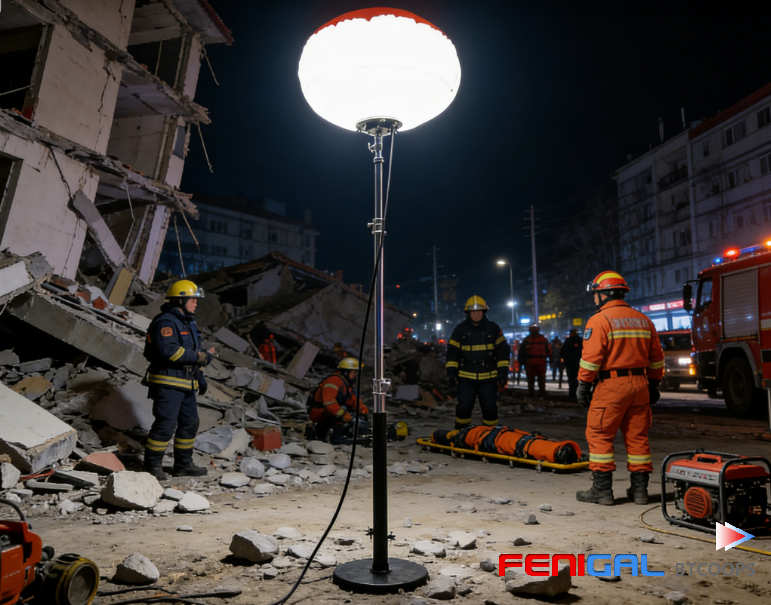

| Disaster Management | Earthquake rubble search at night | Eliminates shadows in deep crevices, improves drone visibility |
| Large Events | Music festival backstage & emergency routes | Meets IEC 60598 safety standards for public assembly |
| Infrastructure | Bridge or dam inspection after dark | Uniform vertical illuminance for structural defect detection |
| Oil & Gas | Refinery turnaround maintenance | Explosion-safe (non-sparking), cool surface temperature |
Product Advantages
Performance & Innovation
High-efficiency COB LED array with secondary optical lens for even diffusion
Active thermal management with dual fans and aluminum heat sink
Optional GPS tracker for asset monitoring in high-theft zones
Global Compliance & Support
CE, RoHS, FCC, and ISO 9001 certified
Compatible with UNGM, World Bank, and EU procurement frameworks
Dedicated technical support in English, French, Spanish, and Arabic
Packaging & Logistics
Standard packaging: Reinforced double-wall carton with internal EPE foam
Dimensions: 123 × 68 × 48 cm | Gross Weight: 18 kg
Optional export wooden crate (ISPM 15 compliant) for air/sea freight
MOQ: 5 units | Lead time: 15 working days
