SUN LED1000 Dia.100cm 1000W 230V 136000lm
Technical Data
| Parameter | Unit | Value |
|---|
| Power and Voltage | - | 1000w 230 V AC |

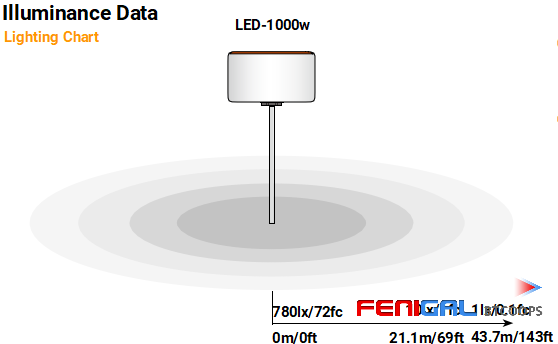

| Lighted Area (>1lux / 0.1fc) | m²/ sq.ft. | 6,000 / 64,550 |
| Lighted Area (>10 lux / 1fc) | m²/ sq.ft. | 1,400 / 15,060 |
| Light under the balloon (2~2.5m) | Lux / Fc | 780 / 72 |
| Maximum Lumen | lm | 136,000 |
| Color Temperature | °K | 3000 / 4500 / 6500 |
| Supply Voltage Description | - | * supply voltage could be AC or DC as per request . AC works on power grid or a portable generator < 1kVA. DC works on a portable DC power source or lead-acid/lithium battery connected by cigarette lighter, crocodile clip, .customised plug etc. |
| Parameters | Details |
|---|
| Lamps | 1000w 230 V AC |
| Average lamp life * | 50,000 h |
| Efficiency | 136 lm/W |
| Light source type | 12 LED COB panels (integrated supply) |
| Maximum power | 12 x 100 W LED |
| Power supply | mains AC 230V 50/60Hz |
| Restrike time | Instant |
| Envelopes options | Tubular or Oval, with or without reflector |
| Power supply options | Lead-acid battery, lithium battery, solar panel |
| *Note | Under normal conditions of use |
Safety Data
| Flame-retardant rip-stop fabric | For tungsten halogen lamp only |
| Reflector | To improve highlight luminance and avoid light |
| Rain and dust proof material | IP54 |
| Lamps protection | Integrated anti-vibration structure |
| Wind resistance of the balloon | 50 km/h |

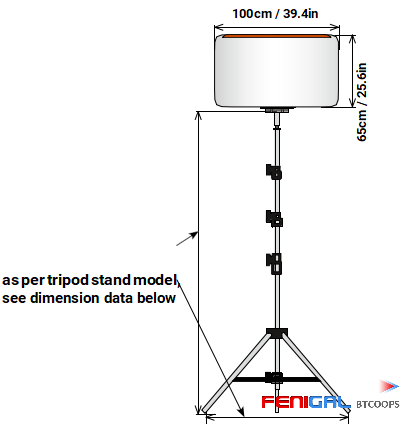

Working Dimension
Accessories

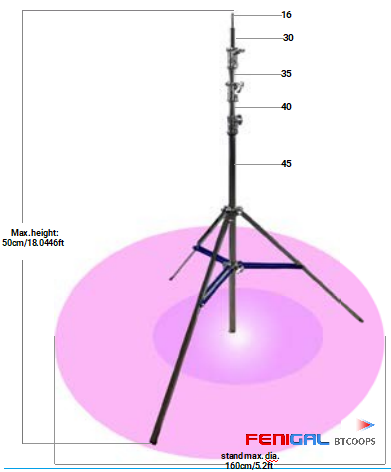

Tripod Data
| Specifications for TP550A | Values |
|---|
| Max. height | 550cm/18.0446ft |
| Min. height | 190cm/6.2ft |
| Retracted length | 190cm/6.2ft |
| Weight | 18.9kg/42lb |
| Loading weight | 40kg/88lb |
| Stand max. dia. | 160cm/5.2ft |

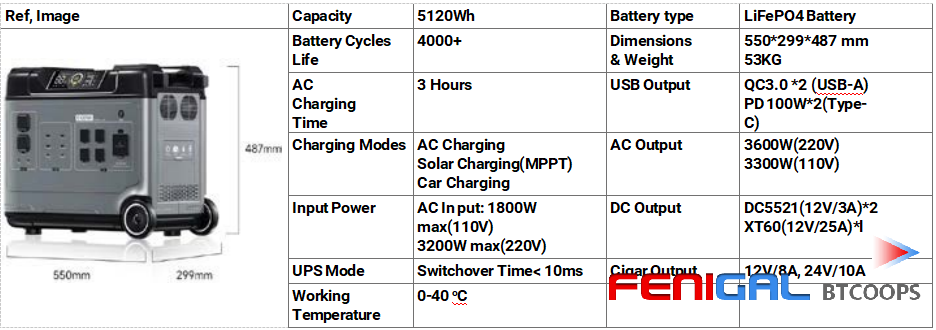

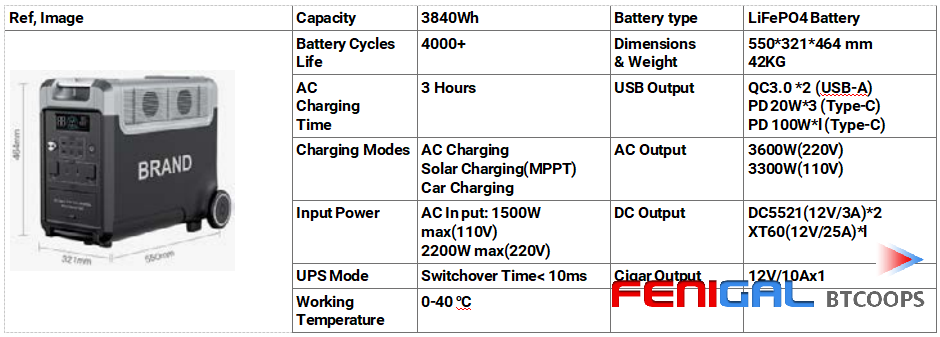

Mobile Power Supply
