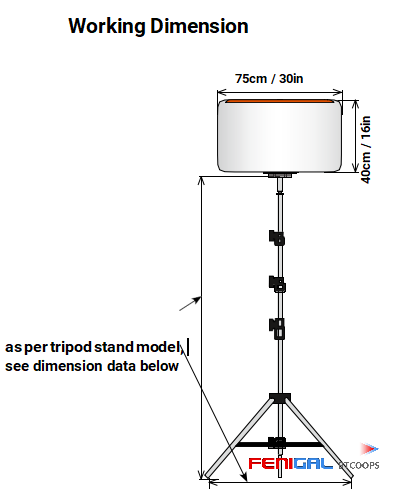

SUN LED480 Dia.75cm 480W 230V 65280lm

Home>LED balloon light

USD

Basic Information

Model No.:

Material

Usage

Dimension

Weight

Basic Terms

Certification

M.O.Q.

Leadtime

Packing

Shipping option

Leave Us Message Contact Us

Technical Data

		480w 230 V AC

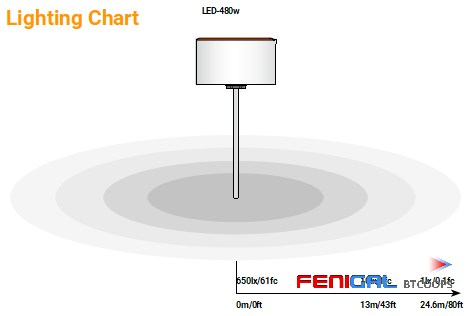

Lighted area > 1lux / 0.1fc	m²/ sq.ft.	1,900 / 20,340
Lighted area > 10 lux / 1fc	m²/ sq.ft.	530 / 5,680
Light under the ballon - 2~2.5m	Lux / Fc	650 / 61
Maximum lumen	lm	65,280
Color temperature	°K	3000 / 4500 / 6500

* supply voltage could be AC or DC as per request. AC works on power grid or a portable generator < 1kVA. DC works on a portable DC power source or lead-acid/lithium battery connected by cigarette lighter, crocodile clip, .customised plug etc.

		480w 230 V AC
Lamps		8 x 60 W LED
Average lamp life *		50,000 h
Efficiency		136 lm/W
Light source type		4 LED COB panels (integrated supply)
Maximum power		480 W
Power supply		230V AC
Restrike time		Instant
Envelopes options		Tubular or Oval, with or without reflector
Power supply options		Lead-acid battery, lithium battery, solar panel

*Under normal conditions of use

CCT Options

Outstanding features:

360° glare-free safety lighting
Bridglux(USA) or Epistar(Taiwan) LED Chips of supreme high efficacy and quality
Meanwell or Philips LED Drives in standard (PSU) version
Dimming or advanced control (DMX512 etc.) options available

		480w 230 V AC
Lamps		8 x 60 W LED
Average lamp life *		50,000 h
Efficiency		136 lm/W
Light source type		4 LED COB panels (integrated supply)
Maximum power		480 W
Power supply		230V AC
Restrike time		Instant

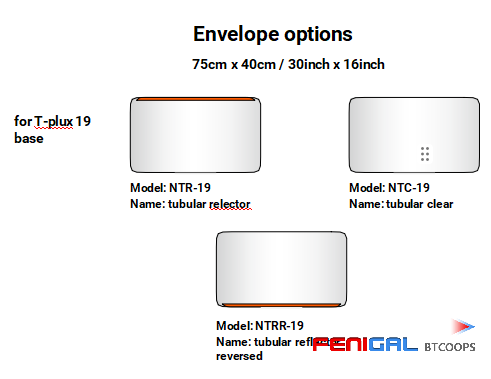

Envelopes options		Tubular or Oval, with or without reflector
Power supply options		Lead-acid battery, lithium battery, solar panel

*Under normal conditions of use

Safety Data

Features	Details
Fabric property	Flame-retardant rip-stop fabric (for tungsten halogen lamp only)
Reflective device	Reflector to improve highlight luminance and avoid light
Protection level	Rain and dust proof material, IP54
Lamp protection	Integrated anti-vibration structure
Wind resistance of the balloon	60 km/h

Accessories

Tripod Data

	TP550A
Max. height	550cm/18.0446ft
min. height	190cm/6.2ft
retracted length	190cm/6.2ft
weight	18.9kg/42lb
loading weight	40kg/88lb
stand max. dia.	160cm/5.2ft

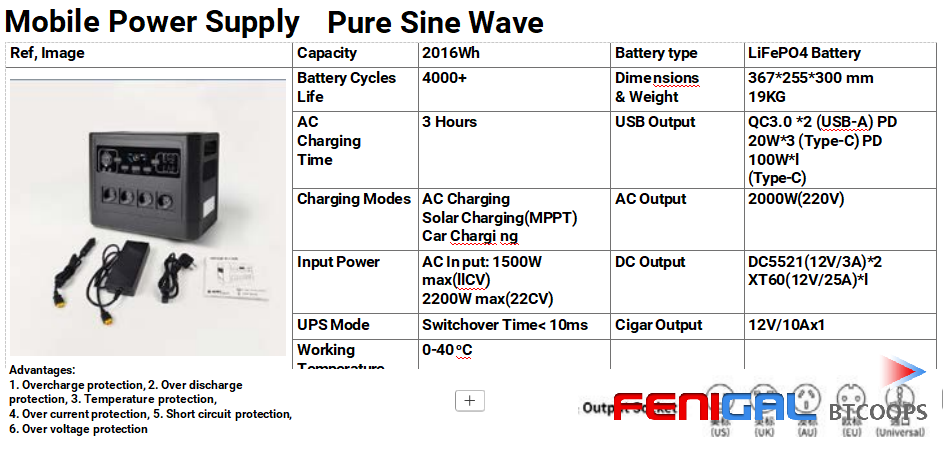

Mobile Power Supply Pure Sine Wave

{pboot:if('161'==159,163)}

Film Lighting Balloon manufacturing, quality control and capability assurance

Production Process & Equipment

Our production begins with computer-aided design (CAD). The process involves precise cutting of double-layer PVC material (typically 0.3mm reflective mirror film for the outer layer and a thicker, 0.45mm-0.50mm PVC for the inner lining) using automated cutting machines . The pieces are then assembled by high-frequency welding machines, which create strong, airtight seams. This is followed by the attachment of reinforced D-rings for secure hanging .
