  • LED balloon light

    SUN LED400 Dia.75cm 400W 230V 60000lm

    Home>LED balloon light

    USD

    Basic Information

    Model No.:
    Material
    Usage
    Dimension
    Weight

    Basic Terms

    Certification
    M.O.Q.
    Leadtime
    Packing
    Shipping option


    CCT Options


    Outstanding features:

    • 360o glare-free safety lighting

    • Bridglux(USA) or Epistar(Taiwan) LED Chips of supreme higah efficacy and quality

    • Meanwell or Philips LED Drives in standard (PSU) version

    • Dimming or advanced control (DMX512 etc.) options available

    Technical Data

    ParameterDetails
    Power and Voltage400w 230 V AC

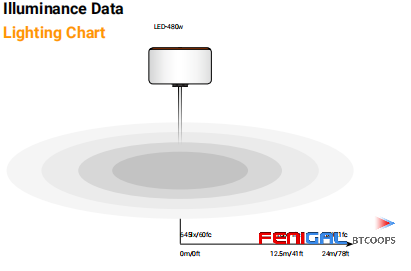

    Lighted Area (>1lux / 0.1fc)1,810 m² / 19,110 sq.ft.
    Lighted Area (>10 lux / 1fc)490 m² / 5,280 sq.ft.
    Light under the balloon (2~2.5m)645 Lux / 60 Fc
    Maximum Lumen60,000 lm
    Color Temperature3000°K / 4500°K / 6500°K
    Supply Voltage Description

    Alternating current (AC) or direct current (DC) can be selected as required.

     AC is suitable for power grids or portable generators <1kVA;

    DC is suitable for portable DC power sources,

    or lead-acid/lithium batteries connected via cigarette lighters,

    crocodile clips, custom plugs, etc.

    Lamps4 x 100 W LED
    Average Lamp Life*50,000 h
    Efficiency150 lm/W
    Light Source Type4 LED COB panels (integrated power supply)
    Maximum Power400 W
    Power Supply230V AC
    Restrike TimeInstant
    Envelope OptionsTubular or oval, with or without reflector
    Power Supply OptionsMobile Power Supply
    *NoteUnder normal conditions of use

    Safety Data

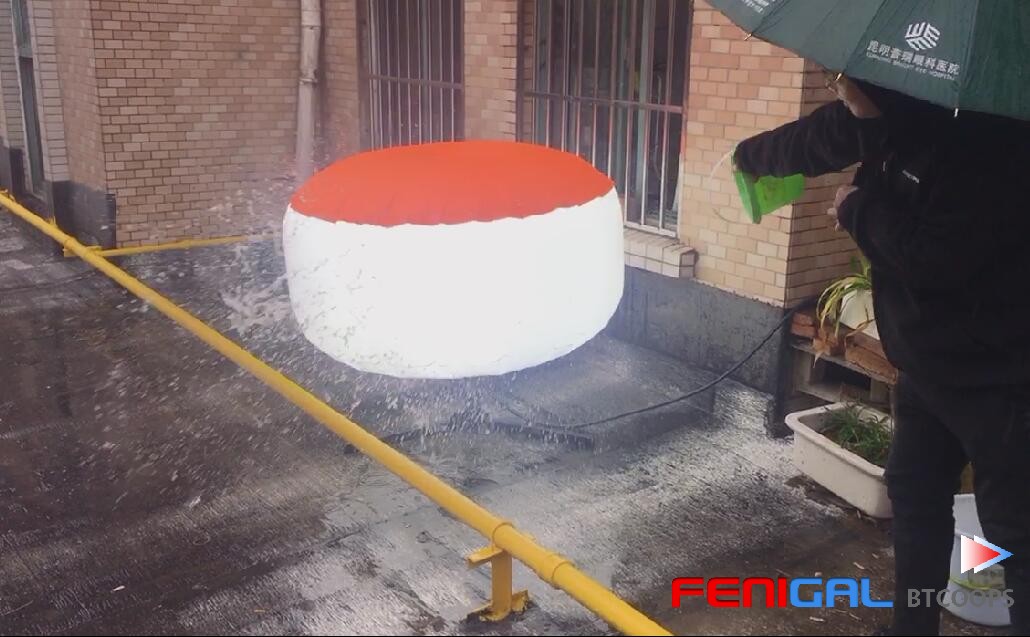

    Rain and dust proof material

    IP54

    Lamps protection

    Integrated anti-vibration structure

    Wind resistance of the balloon

    60 km/h

    Flame-retardant rip-stop fabric

    For tungsten halogen lamp only

    Reflector function

    To improve highlight luminance and avoid light

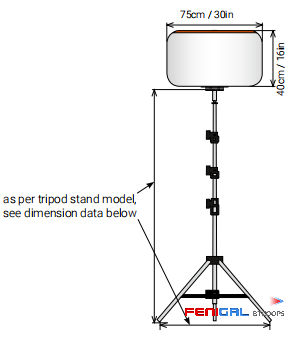

    Working Dimension

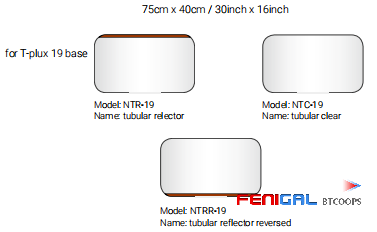

    Envelope options



    Accessories

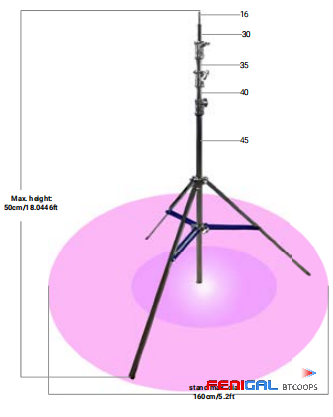

    Tripod Data


    TP550A
    Max. height
    550cm/18.0446ft
    Min. height
    190cm/6.2ft
    Retracted length
    190cm/6.2ft
    Weight
    18.9kg/42lb
    Loading weight
    40kg/88lb
    Stand max. dia.
    160cm/5.2ft

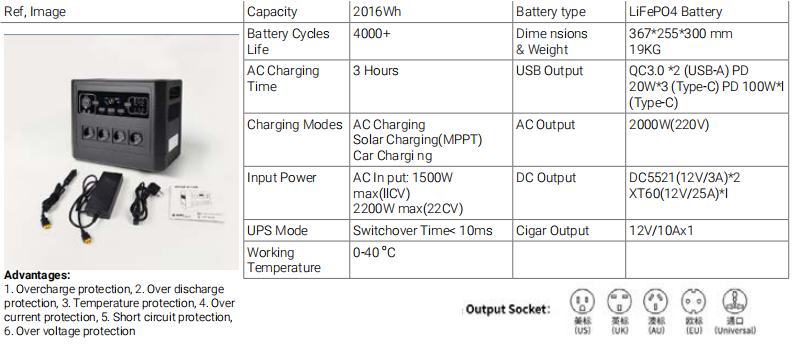

    Mobile Power Supply    Pure Sine Wave

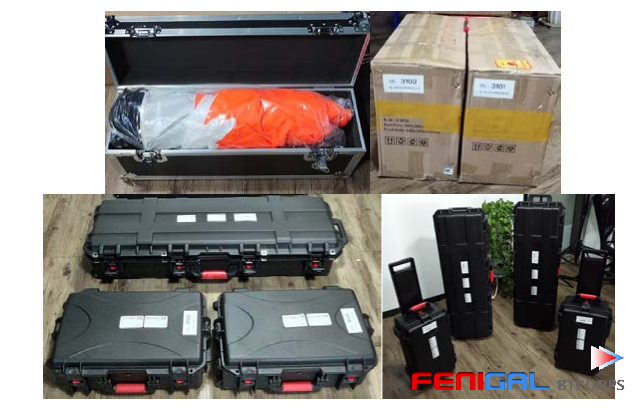

    Optional and Flexible Packaging
