    Safety Rescue Balloon Lights 360° Glare-Free Illumination for Construction & Emergency, 600W - 4kW Power Options

    Home>LED balloon light

    USD

    Basic Information

    Model No.:
    Material
    Usage
    Dimension
    Weight

    Basic Terms

    Certification
    M.O.Q.
    Leadtime
    Packing
    Shipping option

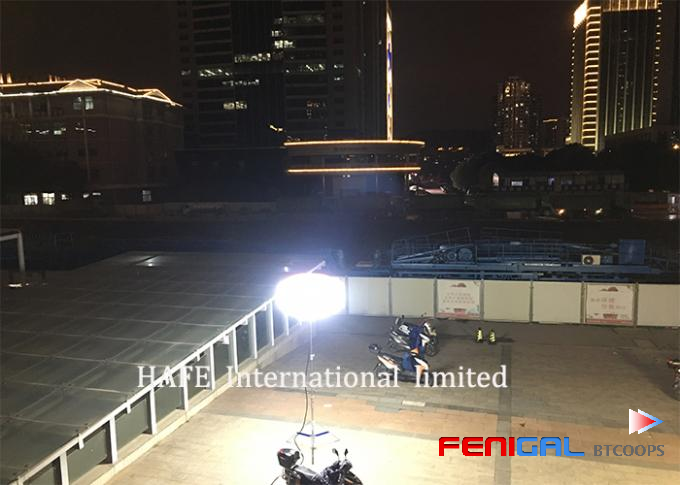

    When it comes to ensuring safety and visibility in demanding environments, our Safety Rescue Balloon Lights are the go-to solution. Available in various power options including 600W, 1kW, 2kW, and 4kW, and compatible with 120/230V power sources, these lights offer non-glare lighting and 360-degree illumination, making them ideal for construction, safety, and rescue operations.


    Our Sun series of air-inflated balloon lights stands out as a masterpiece integrating the latest lighting technologies. Combining LED with conventional light sources such as tungsten halogen, metal halide, or film grade HMI lamps, it caters to a wide range of applications that require glare-free and 360-degree efficient safety lighting. The tubular balloon envelope diffuser distributes light evenly in all directions, boasting a high luminance penetration rate. Optionally made from M1 rated fire retardant fabric, it adds an extra layer of safety.


    Designed mainly for specific applications in construction, industrial, safety & rescue industries, the Sun series balloon light comes with several general features. Its air-inflated balloon structure with special fabric, available with or without an internal reflector, ensures durability and efficient light diffusion. It can be mounted on tripod stands, poles, or equipment, offering flexibility in various setups. Suitable for both indoor and outdoor use, it provides options for different efficient light sources, including tungsten (HA), LED, and HID (HMI/metal halide). With compatibility to global electrical power in AC110, 120, 220, 230V and some models supporting DC power, it can start and work directly depending on the light source type. The DC version even offers a battery work mode for added convenience.


    The SUN LED1000 model, with a diameter of 100cm and a power of 1000W at 230V, showcases exceptional performance. It can illuminate an extensive area, with over 6,000 m² achieving > 1lux and 1,400 m² reaching > 10 lux. With a maximum lumen of 136,000 and customizable color temperatures of 3000°K, 4500°K, or 6500°K, it adapts to different lighting needs. Comprising 12 x 100W LEDs and offering an average lamp life of 50,000 hours, it ensures long-term reliability.


    Technical ParameterDetails
    Power1000W 230V AC
    Lighted area (> 1lux / 0.1fc)6,000 m² / 64,550 sq.ft.
    Lighted area (> 10 lux / 1fc)1,400 m² / 15,060 sq.ft.
    Light under the balloon (2 - 2.5m)780 Lux / 72 Fc
    Maximum lumen136,000 lm
    Color temperature3000°K / 4500°K / 6500°K
    Supply voltageAC or DC as per request
    Lamps12 x 100W LED
    Average lamp life50,000 h
    Efficiency136 lm/W
    Light source type12 LED COB panels (integrated supply)
    Maximum power1000W
    Power supplymains AC 230V 50/60Hz
    Restrike timeInstant
    Envelopes optionsTubular or Oval, with or without reflector
    Power supply optionsLead - acid battery, lithium battery, solar panel


    Whether you're working on a construction site, responding to an emergency, or conducting industrial operations, our Safety Rescue Balloon Lights provide the reliable, high-powered, and glare-free illumination you need.


    {pboot:if('161'==159,163)}

    Film Lighting Balloon manufacturing, quality control and capability assurance

    精密加工

    Production Process & Equipment

    Our production begins with computer-aided design (CAD). The process involves precise cutting of double-layer PVC material (typically 0.3mm reflective mirror film for the outer layer and a thicker, 0.45mm-0.50mm PVC for the inner lining) using automated cutting machines . The pieces are then assembled by high-frequency welding machines, which create strong, airtight seams. This is followed by the attachment of reinforced D-rings for secure hanging .

    质量检测

    严格质量检测

    每台设备出厂前均经过72小时连续运行测试,模拟实际工作条件,确保产品在苛刻环境下的稳定性和可靠性。检测项目包括扭矩精度、气密性、耐久性等20多项指标。

    装配流程

    标准化装配流程

    采用模块化设计和标准化装配流程,每个装配环节都有明确的质量控制点。装配完成后,产品还需经过最终性能测试和外观检查,确保出厂产品质量100%合格。
