Arcti™trade; Architectural Balloon Lighting
Arcti™ is a kind of new architectural lighting, which integrates balloon light technologies.
It has 2 subcategory of use – Interior Arcti™ and Exterior Arcti™.

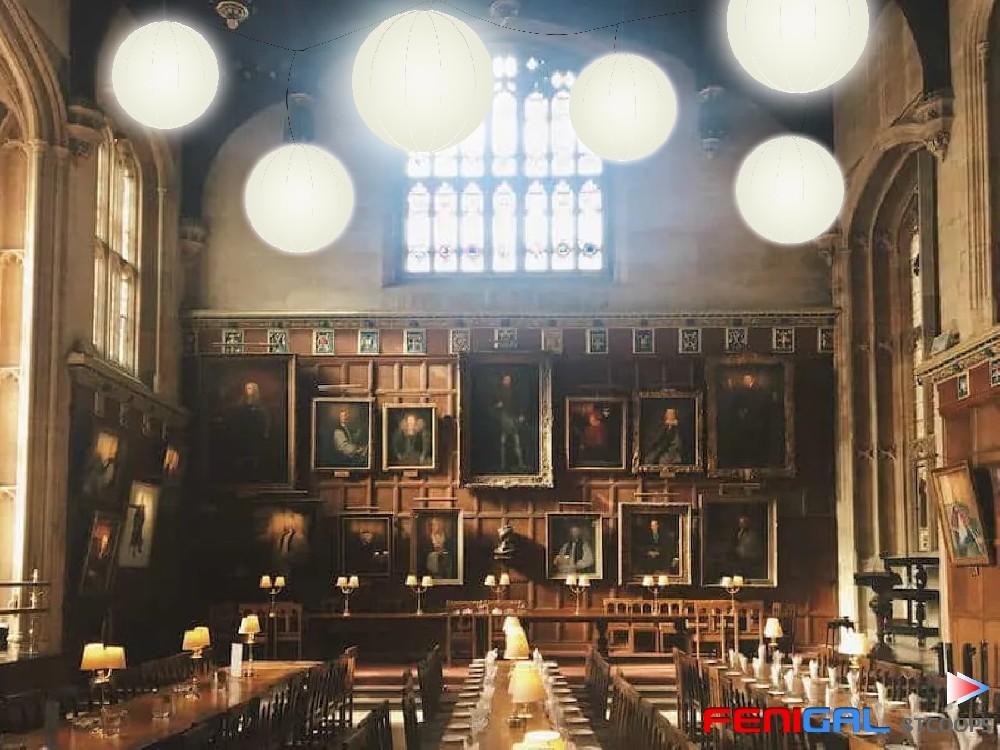

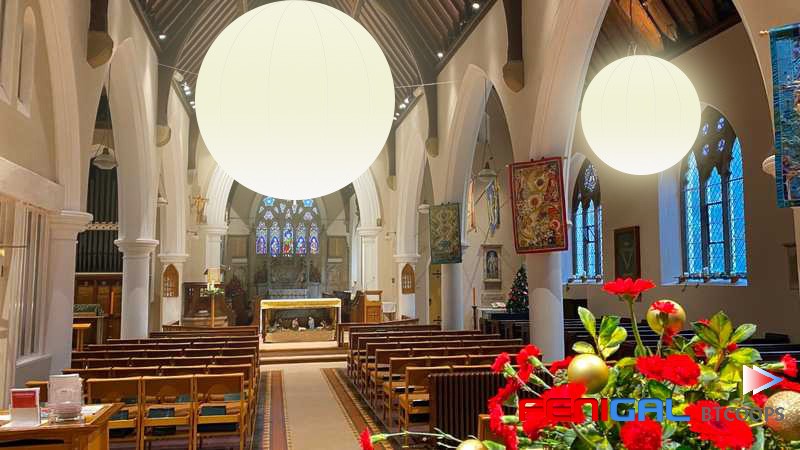

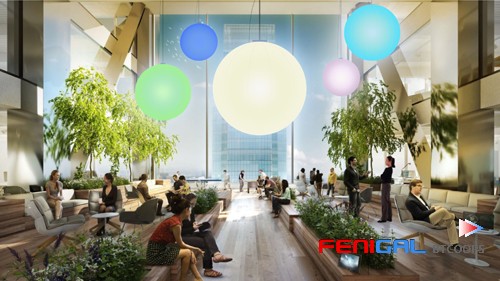

The Interior Arcti™ normally work as Commercial Lighting and Project Lighting applied in a City Center (grand mall activity) or a building hall interior decorative or ambient lighting. It is normally hung from the interior ceiling, or in special case coming with extra metallic accessories for horizontal mount.
General Features:
1) Inflatable lighting envelope structure of 2 optional structures (built-in fan or external air pump); it can be either a semi-permanent or temporary installation.
2) Surface shiny gloss coating. Can stick and remove logo of vinyl graphic.
3) Hanging from ceiling, indoor or outdoor use if with specific shelter.
4) Control options: Manual (manual, auto, sound, remote etc.) or Advanced control (DMX512)
5) White LED (Color temperature 2200k-6500k) or RGB+W LEDs (red, green, blue, white and over 72 mixed perceptible colors.)
6) Global voltage adaptability: LED AC100V-240V, 50-60Hz; Special DC voltage optional;
Polysilk™ – special treated fabric Material
Interior Arcti™ is made of special treated nylon fabric, an exceptionally strong and elastic material that is stronger than polyester fibers, shining glossy surface, Elegant and luxurious. Easy for washing and branding stick logo on or remove as if need .
Besides, interior Arcti™ could also be classified into below categories on lighting technologies:
Balloon diameter of 60cm~5.0m, with different shape options.
Balloon-Nylon shiny gloss fabric material /Common Nylon fabric material/PVC material
Lighting source: LED light source, dimmable. HMI or Tungsten halogen available at request.
Functions:
Decoration / Illumination / Communication / Signal
Illumination LED color: warm white or cold white, optional of RGB+W color changing LED.
Applications:
1) All kinds of mall events-corporate, social, Conference Center, Opera House, indoor sports
2) Exhibit hall, hotel
3) Business product launch, promotion, branding etc.
4) Entertainment
5) Hospitality & catering
Interior Arcti™ Sphere
We offer a range of different lighting options suited to every needs.
Like most of our products, the light diffusion is soft, beautiful, glare free and creates no shadow.
This balloon is fully customizable in terms of size and design, convenient to fit any kind of space.
| Ø 60 cm | Ø100 cm | Ø150 cm | Ø 200 cm | Ø 250 cm | Ø 300 cm | Ø400 cm | Ø 500 cm |
Lamps | E27/LED | E27/LED | E27/LED | E27/LED | E27/LED | E27/LED | E27/LED | E27/LED |
Luminous flux | from
2000 to
8000 lm | from
2000 to
8000 lm | from
2000 to
8000 lm | from
16000 to
96000 lm | from
16000 to
128000 lm | from
16000 to
128000 lm | from
24000 to
256000 lm | from
24000 to
260 000 lm |
Color
temperature | from 2700
to 6500 K | from 2700
to 6500 K | from 2700
to 6500 K | from 2700
to 6500 K | from 2700
to 6500 K | from 2700
to 6500 K | from 2700
to 6500 K | from 2700
to 6500 K |
Number of
lamps | 1 - 2 | 1 - 2 | 1 - 2 | 4-8 | 4-8 | 4-12 | 6-18 | 6-18 |
Total lamp
power | from 20
to 80 W | from 22
to 80 W | from 20
to 80 W | from 160
to 960 W | from 160
to 1280 W | from 160
to 1280 W | from 240
to 2560 W | from 240
to 2560 W |
Efficiency | >100 lm/W | >100 lm
/W | >100 lm
/W | >100 lm
/W | >100 lm
/W | >100 lm
/W | >100 lm
/W | >100 lm
/W |
Inflation type | By pump | By pump | Ventilation | Ventilation | Ventilation | Ventilation | Ventilation | Ventilation |
Attention: the listed specifications are subject to change without prior notice.
Interior Arcti™ Ellipse
The Ellipse distinguishes itself from its unique oval shape allowing it to light up a wider area on the floor than a sphere. This balloon can be integrated in any kind of space with lower ceilings.
| Ø 90 h 60 cm | Ø 135 h 90 cm - M | Ø 195 h 130 cm | Ø 240 h 160 cm | Ø 300 h 200 cm |
Lamps | E27/LED | E27/LED | E27/LED | E27/LED | E27/LED |
Luminous flux | from 2000
to 8000 lm | from 16000
to 32000 lm | from 16000
to 32000 lm | from 32000
to 64000 lm | from 48000
to 96000 lm |
Color temperature | from 2 700
to 6500 K | from 2 700
to 6500 K | from 2 700
to 6500 K | from 2 700
to 6500 K | from 2 700
to 6500 K |
Number of lamps | 1-2 | 8 | 8 | 16 | 24 |
Total lamp power | from 20
to 80 W | from 160
to 320 W | from 160
to 320 W | from 320
to 640 W | from 480
to 960 W |
Efficiency | >100 lm
/W | >100 lm
/W | >100 lm
/W | >100 lm
/W | >100 lm
/W |
Inflation type | By pump | Ventilation | Ventilation | Ventilation | Ventilation |
Attention: the listed specifications are subject to change without prior notice.
Interior Arcti™ DW Sphere
The Arcti™ DW (dual white) offers large possibilities in light management.
The color temperature can be chosen exactly to the degree, which enables to control to create the perfect lighting environment.
| Ø 130 cm | Ø 160 cm | Ø 200 cm |
Lamps | LED | LED | LED |
Luminous flux | 50 000 lm | 50 000 lm | 50 000 lm |
Color temperature | Dual white:
from 3 000 to 6 500 K | Dual white:
from 3 000 to 6 500 K | Dual white:
from 3 000 to 6 500 K |
Total lamp power | 400 W | 400 W | 400 W |
Efficiency | 125 lm/W | 125 lm/W | 125 lm/W |
Lamps lifetime | 50 000 h | 50 000 h | 50 000 h |
Inflation type | Ventilation | Ventilation | Ventilation |
Attention: the listed specifications are subject to change without prior notice.
Interior Arcti™ DW Ellipse
The Ellipse DW (dual white) has the same integrated lighting technology as the Arcti™ DW. Thanks to its elliptical shape, it is able to emit light on a wider and larger surface area than the spherical balloons.
| Ø 195 h 130 cm | Ø 240 h 160 cm | Ø 300 h 200 cm |
Lamps | LED | LED | LED |
Luminous flux | 50 000 lm | 50 000 lm | 50 000 lm |
Color temperature | Dual white:
from 3 000 to 6 500 K | Dual white:
from 3 000 to 6 500 K | Dual white:
from 3 000 to 6 500 K |
Total lamp power | 400 W | 400 W | 400 W |
Efficiency | 125 lm/W | 125 lm/W | 125 lm/W |
Lamps lifetime | 50 000 h | 50 000 h | 50 000 h |
Inflation type | Ventilation | Ventilation | Ventilation |
Attention: the listed specifications are subject to change without prior notice.
Arcti™ series special custom balloon lights are listed below:
